Sentosa Golf Club, designed by Andy Johnston and Swanson Golf Design, has recently commenced a total renovation of the Tanjong Course. The Serapong Course at Sentosa Golf Club had previously been renovated in 2006 and underwent an irrigation upgrade in 2015. The Serapong Course is renowned for hosting the Singapore Open on the European Tour as well as the HSBC Women’s Open on the LPGA tour. We all remember Paula Creamers’ dramatic 75’ winning eagle putt there in 2014. We are sure the Tanjong will provide an equally exciting and interesting but different challenge to that of the Serapong.

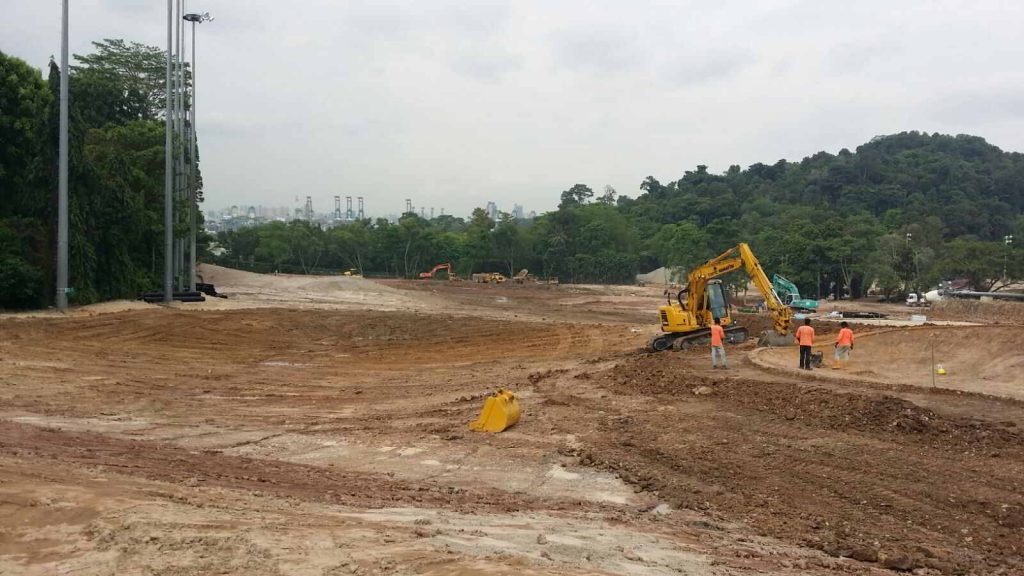

The project is on a fast track with a re-opening scheduled for November 1st. Work has commenced on the driving range which also will function as the turf nursery for the rest of the fairways and roughs. The installation is on a fast track since the driving range must be completed and opened for the Singapore Open the week of January 28th!! The temporary water supply for the driving range grow-in will come from interconnection to the Serapong irrigation system until the new pump station and mainline can be installed.
The golf course is being constructed by TEHC International PTE Ltd. and the irrigation system is installed by Advanced Tech Irrigation Golf PTE Ltd., both from Singapore. ATI and TEHC were both involved in the Serapong irrigation renovations last year.
ATI provided the irrigation system design and is currently providing the system layout, inspection, as-built development and central computer programming with the keen help of Andy Johnston, GM at Sentosa, Rodney Mckeown GC Superintendent and CK Tan from TEHC International. The system includes wall-to-wall sprinkler coverage at 22m triangular spacing with individual sprinkler control to ensure the utmost water management.
The system features a Toro Lynx central control system with VPe satellites featuring with individual control of each Toro Infinity sprinkler. The system utilizes PVC mainline and fairway laterals and HDPE pipe for the green loops. The 511m3 per hour pump station is manufactured by Flowtronex. All the mainline and lateral valves are manufactured by Leemco.

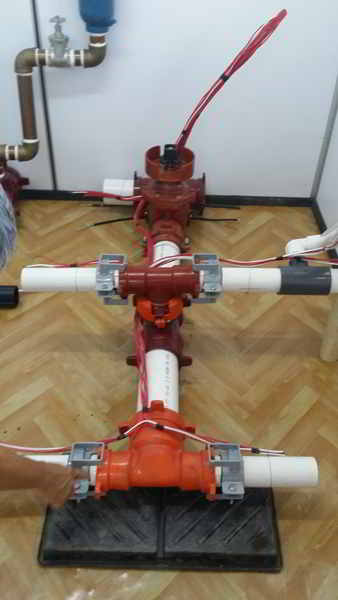

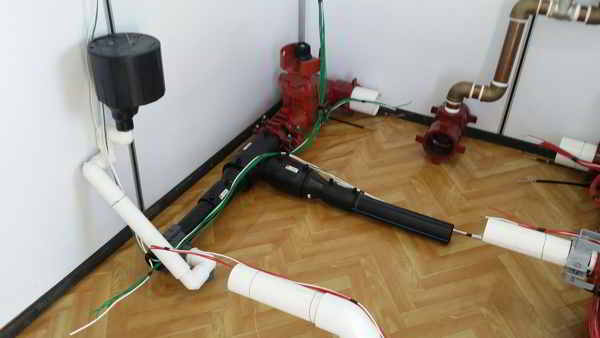

TEHC has prepared installation samples of all the valve assemblies to be installed on the project. The samples were very beneficial for ATI inspection prior to installation, employee training and to help ensure their material procurement is correct.
The system layout is being performed by ATI in coordination with TEHC International via the ATI survey method. TEHC is using their new Trimble G10 centimeter grade GPS mapping instrument. TEHC is instrumental in providing timely and highly accurate surveys of the grass and tree lines, course features and other important base information required to redesign the sprinkler layout based on the actual field conditions. ATI then re-designs the sprinkler layout in the computer. The new sprinkler layout is then laid out by TEHC using the same survey equipment. Any revisions made during the inspection of the layout can be immediately surveyed and updated using the Trimble G10. This method allows ATI to analyze several sprinkler layout options before selecting the optimum layout. This capability typically results in fewer sprinklers required to cover the same area because the triangular sprinkler grid can be finely aligned to the turf perimeters. Not only does this process improve the quality of the layout it helps provide an immediate real-time accurate as-built record of the installation. Additionally, the stakes at each irrigation sprinkler are no longer required to get in the way of other trades such as grading and drainage installations prior to the irrigation installation. Learn more about the benefits and procedures involved with the survey staking.
ATI is very proud to be part of the professional team at Sentosa Golf Club – Tanjong Course renovation 2016!.
